Roll out a new module version

Result

Every root that pins the module moved to the new version through one pull request per wave.

Prerequisites

You need	Why
Roots that pin the module exactly by oci:// tag or digest, registry version or git tag	a range cannot move (Stages lists the cases)
The new version published (Publish your modules)	the rollout pins roots to it
The HCL parser beside terragucci: npm i -D @cdktn/hcl2json	the rollout edits each root’s pin with it
A forge token that can open pull requests, in the variable token_env names	the apply run and the rollout job open the rollout’s pull requests with it
Optional: waves.canary in terragucci.yml	it picks the roots that move first
Optional: rollouts in terragucci.yml	a scheduled job opens each next wave, so nobody runs step 5

Steps

1. Preview the rollout.

   npx terragucci rollout modules/network

   Name the module by path or by source without the pin, and leave out the version to get the newest published. The dry run changes nothing. When pins disagree, --from picks which moves.

   For a module that modules.registry publishes, modules/network also names the calls whose source is its registry address, such as modules.example.com/acme/network/generic, and their version moves. With no version named, the newest the registry lists counts too.

2. Fix any pin it refuses. The preview lists each pin it cannot move, with a tip:

   The pin	Tip
   a range such as ~> 1.4	rollout-floating-pin: pin one version
   set from a variable or a local	rollout-literal-pin: write a literal, since a variable’s value is not in the diff
   absent from the source	rollout-pin: add a ?ref=, ?tag= or version
   two versions of the module in one directory	rollout-one-pin: pin every call at one version

   Do that in its own pull request, then run the preview again.

3. Open the first wave.

   npx terragucci rollout modules/network 1.4.0 --mode apply

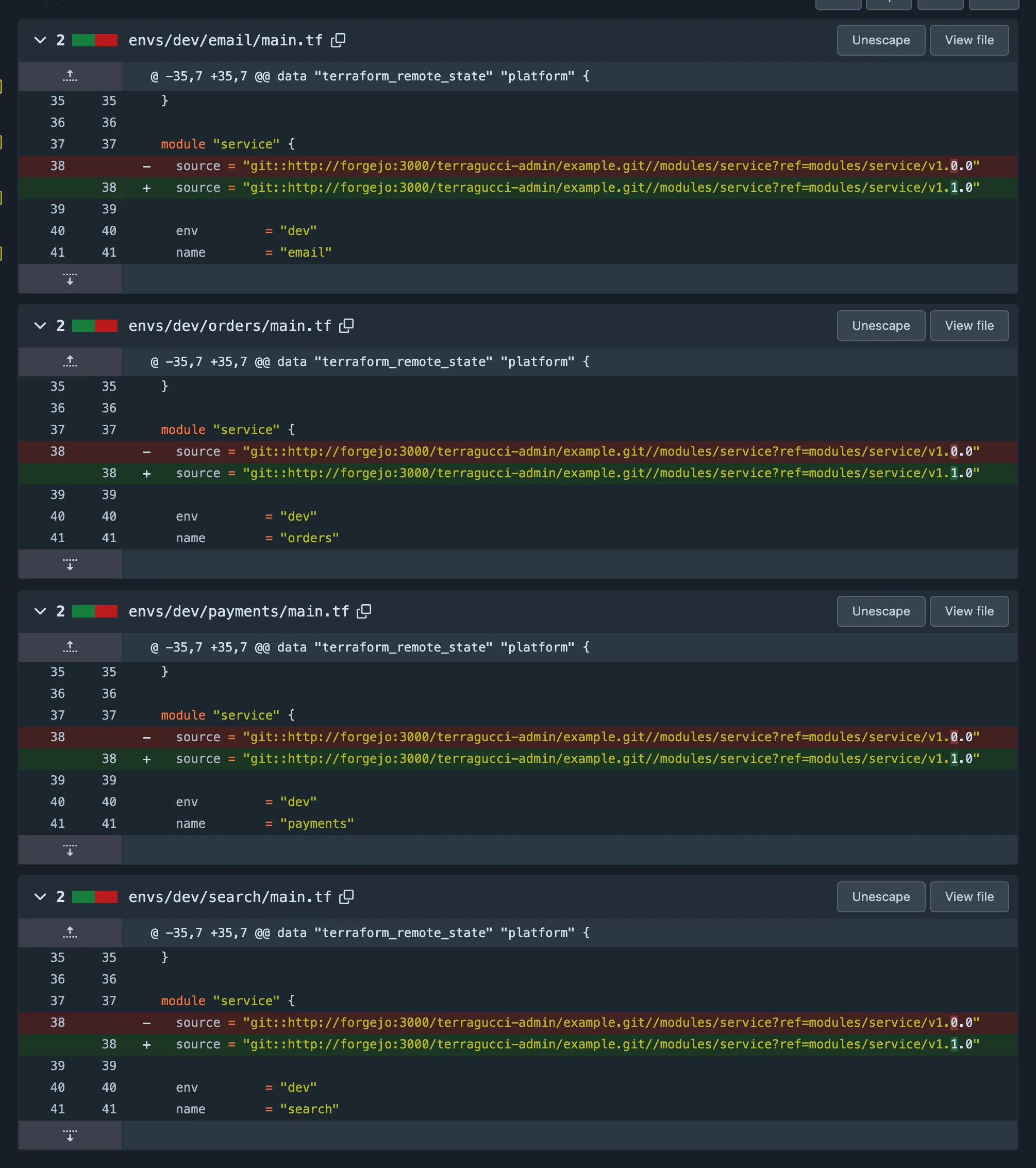

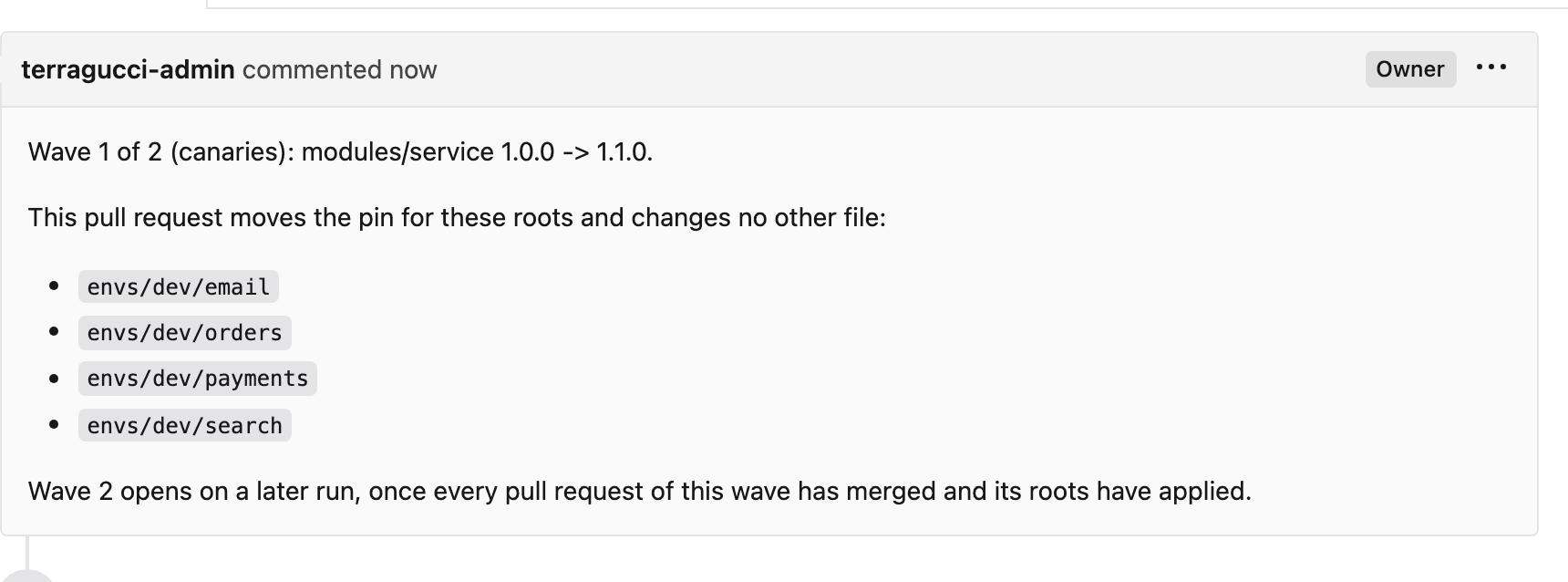

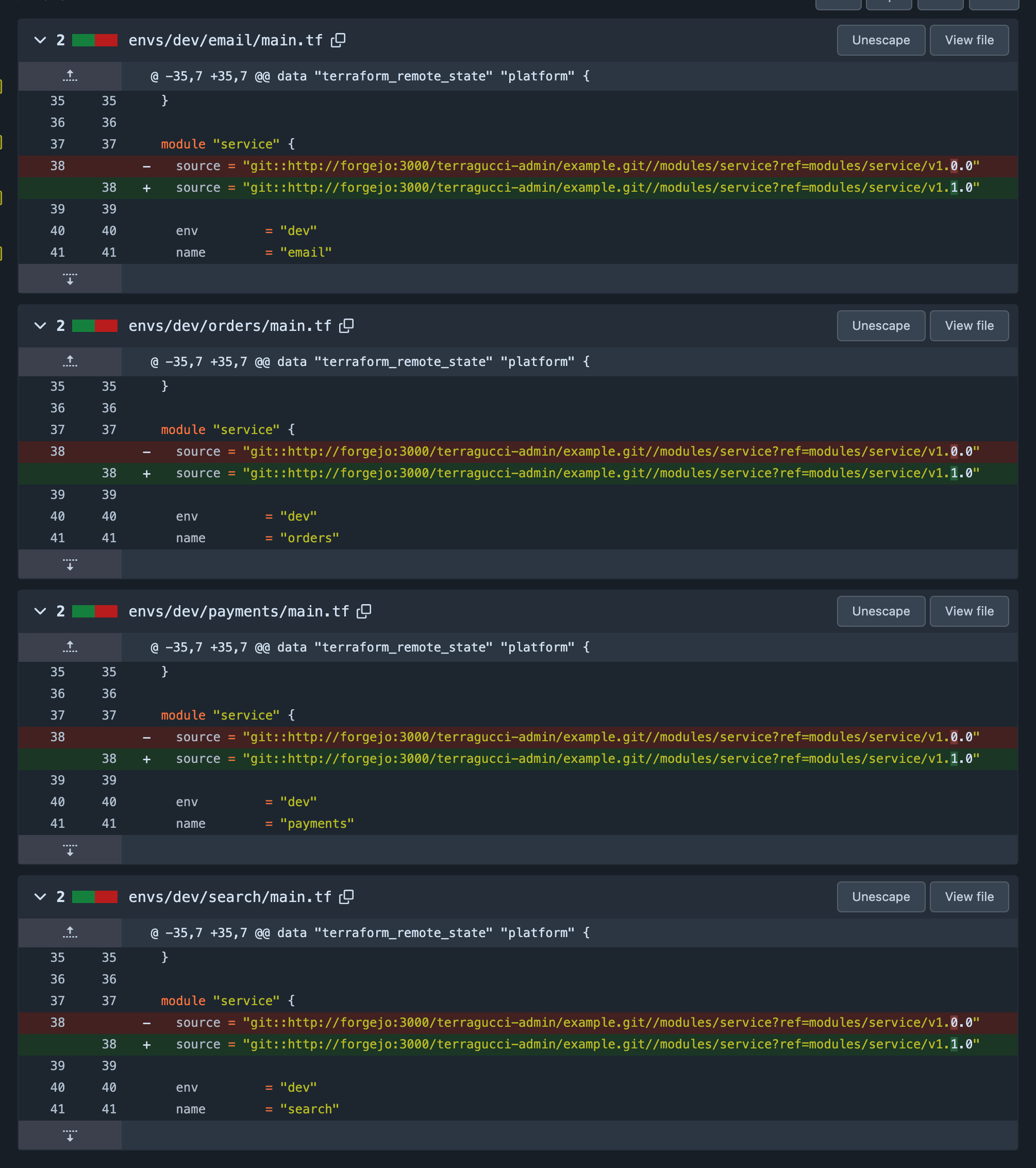

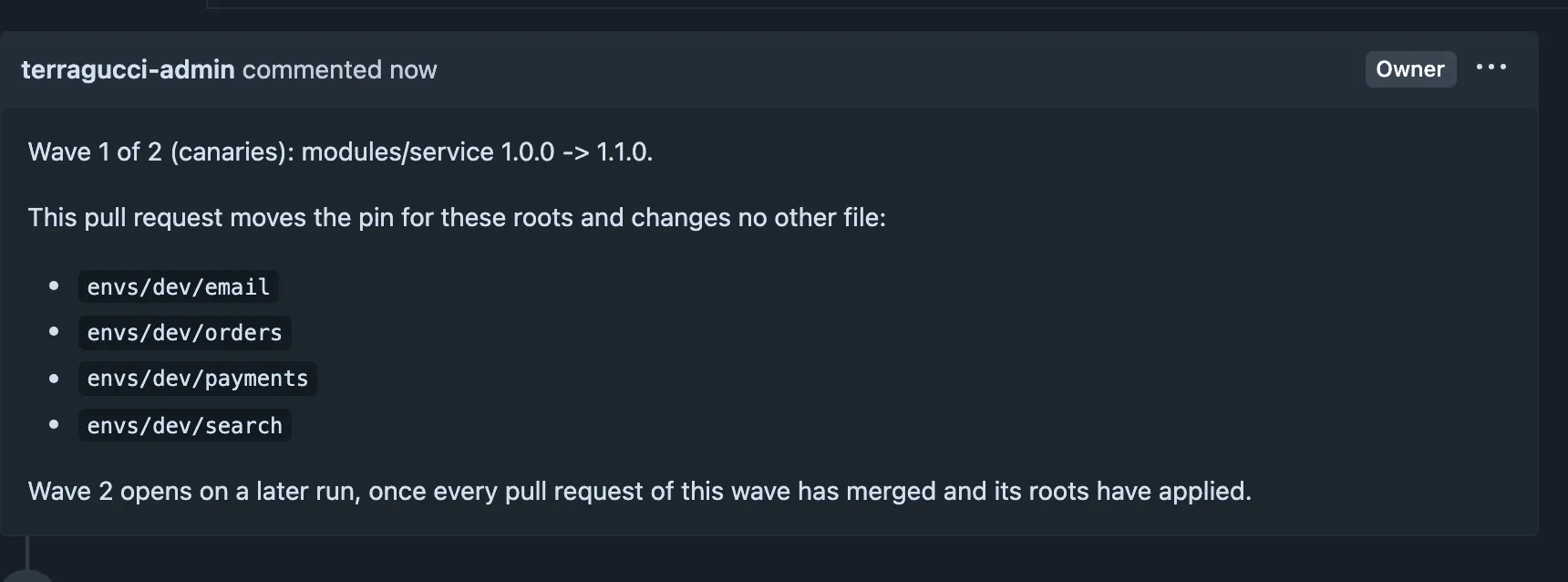

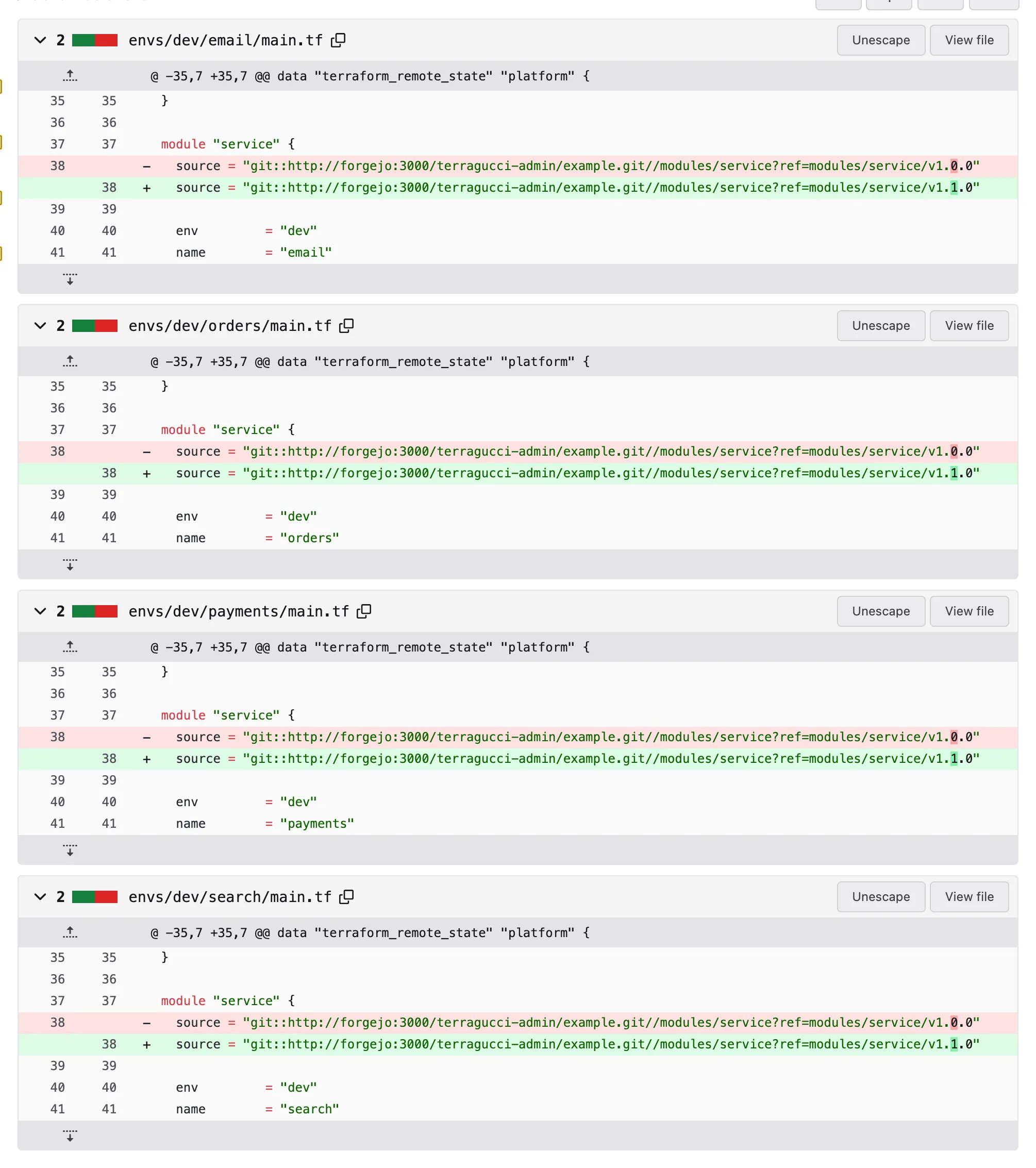

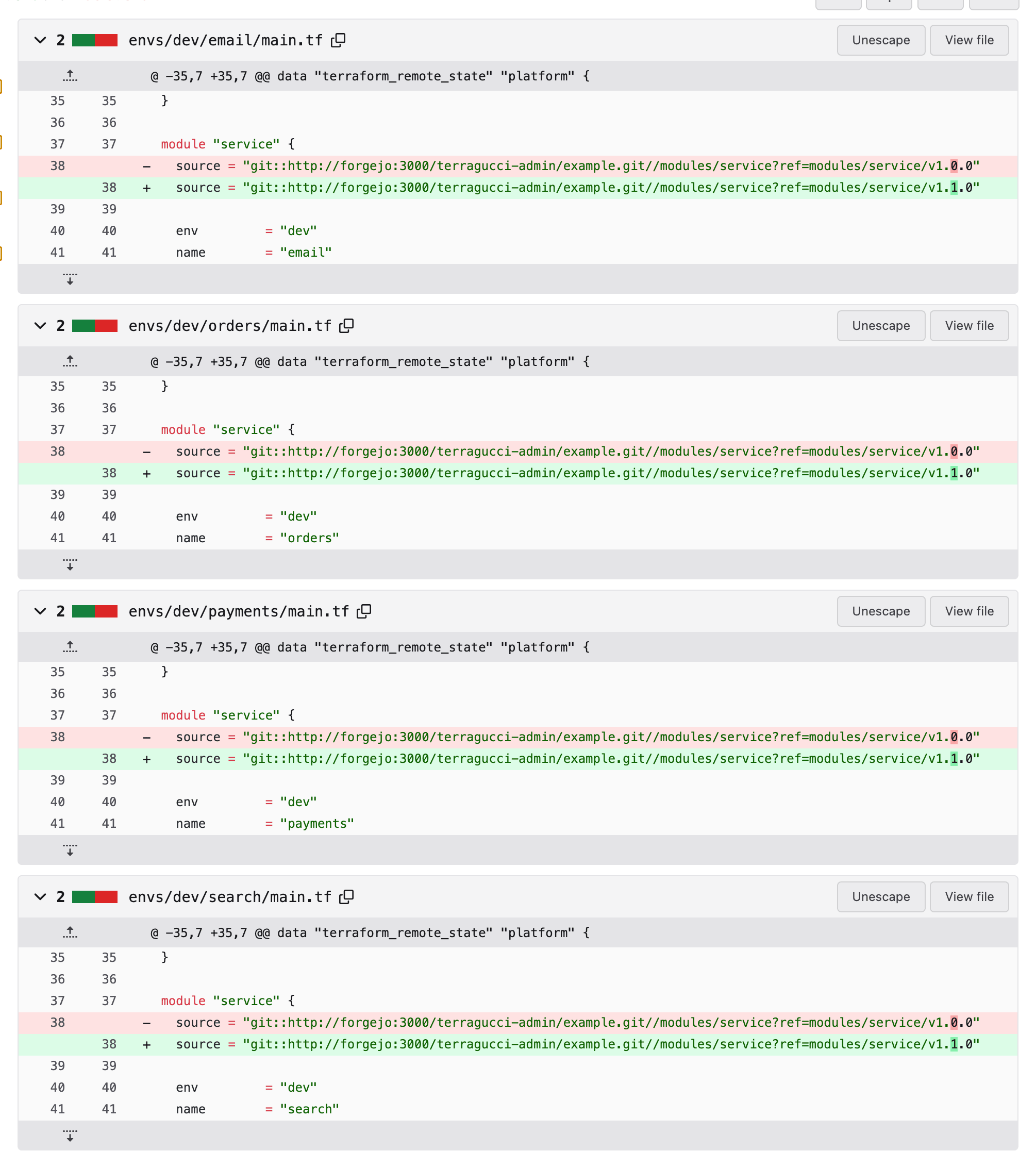

   --mode apply writes to the forge and runs no terraform apply; roots apply after the merge. It opens one pull request for the canary wave, or the first in dependency order. Only that wave’s files change, and each pin keeps its shape.



4. Review and merge it. The apply stage runs on the merge commit.



5. Let the next wave open. With rollouts set, init writes a job that runs terragucci respond rollout --mode apply on that schedule:

   rollouts: "*/15 * * * *"
   token_env: ROLLOUT_TOKEN

   Each run opens the next wave of every rollout whose last wave merged and applied, so a wave opens within one interval. A rollout with a pull request still open, or one closed unmerged, is left alone.

   Forge	Job	Token	Schedule
   GitHub	its own workflow, terragucci-rollout.yml, which you can also start by hand	the secret token_env names, else the job’s own; GitHub runs no workflow for a pull request the job’s own token opens, so name a secret holding a token that can push branches and open pull requests	the rollouts cron
   Forgejo	the same	the secret token_env names, else the job’s own	the rollouts cron
   GitLab	the rollout job in the pipeline	the token_env variable	a pipeline schedule with that cron and the variable TERRAGUCCI_SCHEDULE set to rollouts; init prints the steps

   token_env is the project’s forge token variable, shared beyond the rollout: on GitLab every job that pushes or opens a merge request reads it, and on GitHub and Forgejo the fmt, tips, version-bump and drift jobs export their own token under that name. respond.rollout: off leaves the rollout job out.

   Without rollouts, run the rollout again after each merge. Each run takes at most one step:

   npx terragucci rollout modules/network 1.4.0 --mode apply

   Either way, the next wave waits for the last to merge and apply. The apply status it checks is apply/<path> per directory, else terragucci/apply. A pull request closed unmerged or a failed apply stops the rollout. It never merges or writes a default branch.

   Exit code	Meaning
   0	a step was taken, or the rollout is complete
   3	a pull request waits for a merge or an apply
   1	the rollout stopped

   From a control repo, wave 1 holds every project’s canaries and later waves follow in config order. Each project gets its own pull request per wave. rollouts is a single repo’s key, since a project’s pipeline sees only its own roots; in a control repo, run terragucci respond rollout --mode apply on a schedule of your own.

Provider upgrades

The same flow moves a provider in the lock file:

npx terragucci rollout --provider hashicorp/aws 6.68.0 --mode apply

Each lock file is rewritten for that provider alone, and an exact version constraint moves too. The wave stops unless every other provider stays where it was.

Next

• Tips names setups that make rollouts hard.
• The JSON output of rollout lists each wave’s state for scripts.
