Responses to pipeline events

Every event has a default response that needs no model. No response runs a coding agent; people approve, apply and merge.

Event	Response (default)	Other choices
plan finished	the grouped summary as the pull-request note	none
wave refused	a root-by-root diff of the approved plan against the current one, naming the attributes that moved	off
apply failed	triage from a table of known provider errors, each with its likely fix	off
drift found	a pull request writing the live value where the root sets a literal, and import blocks for resources the state does not hold	attribute, which also names who changed each drifted attribute; off
tip raised	one small pull request per tip: pin a provider from its lock file, add a lock file, add a canary	off
format check failed	a fmt commit on the pull request’s branch, on request	off
module published	release notes from conventional commits	off
rollout wave merged	with rollouts set, a scheduled job opens the next wave once the merged one applied	off, which leaves the job out
module changed with no conventional commit	none; tf-publish proposes a patch	suggest: a suggested bump in a release pull request, from the typed-decision service
pull request opened or updated	none	check: a typed decision flags a description that leaves out what the plan destroys or replaces

Settings

Set a response per event under respond in terragucci.yml; a key you leave out keeps its default.

respond:
  drift: pull-request        # the default; attribute names who changed each attribute
  apply-failed: triage       # the default
  plan: summary

Key	Takes	Default
plan	summary	summary
wave-refused	diff, off	diff
apply-failed	triage, off	triage
drift	pull-request, attribute, off	pull-request
tips	pull-request, off	pull-request
fmt	commit, off	commit
publish	notes, off	notes
rollout	next-wave, off	next-wave
version-bump	suggest, off	off
description	off, check	off

Commands

Each response is a command that dry-runs by default; --mode apply opens the pull request or pushes the commit.

terragucci respond plan --report terragucci-report
terragucci respond wave-refused --approved terragucci-report/approved --current terragucci-report/current --wave 2
terragucci respond apply-failed --log apply.log
terragucci respond drift --mode apply
terragucci respond drift --root envs/prod/orders --import aws_sqs_queue.extra=https://sqs.us-east-1.amazonaws.com/123456789012/extra --mode apply
terragucci respond tips --mode apply
terragucci respond tips --report terragucci-report --branch my-change --mode apply
terragucci respond fmt --branch my-change --mode apply
terragucci respond publish --module modules/network
terragucci respond version-bump --module modules/network --mode apply
terragucci respond rollout modules/network 1.4.0 --mode apply
terragucci respond rollout --mode apply

With no module, respond rollout finds the rollouts in flight from their pull requests’ terragucci/rollout/ branches and continues each. Without rollouts set, nothing opens the next wave until someone runs it.

A rollout’s newest wave	respond rollout
merged and applied	opens the next wave
merged, not yet applied	waits
still open	leaves it alone
closed without merging	leaves it alone
the last wave, merged	leaves it alone

--json prints one envelope, as every other command does.

Refused waves and failed applies

Wave refused

An approval binds a wave’s set digest, so a wave whose root plan changed after approval applies nothing. The diff reads terragucci-report/approved and terragucci-report/current and lists each root whose plan digest moved. Approve again only once the new plan is the one you want.

Apply failed

Triage knows these provider error classes:

Class	Matches	Likely fix
access denied	AccessDenied, AccessDeniedException, UnauthorizedOperation	grant the permission the message names to the apply role
quota	VpcLimitExceeded, LimitExceeded, TooManyBuckets, ServiceQuotaExceededException	raise the quota or remove unused resources
throttling	Throttling, ThrottlingException, RequestLimitExceeded	run again; lower -parallelism if it repeats
already exists	EntityAlreadyExists, ResourceAlreadyExistsException, BucketAlreadyOwnedByYou, InvalidGroup.Duplicate, QueueAlreadyExists	import it, or give it another name
dependency	DependencyViolation, DeleteConflict, BucketNotEmpty	remove what depends on it first
state lock	Error acquiring the state lock	wait; a person runs force-unlock if no run holds it

The table covers AWS provider errors and Terraform’s state lock message; any other provider’s error is listed as unknown.

Drift

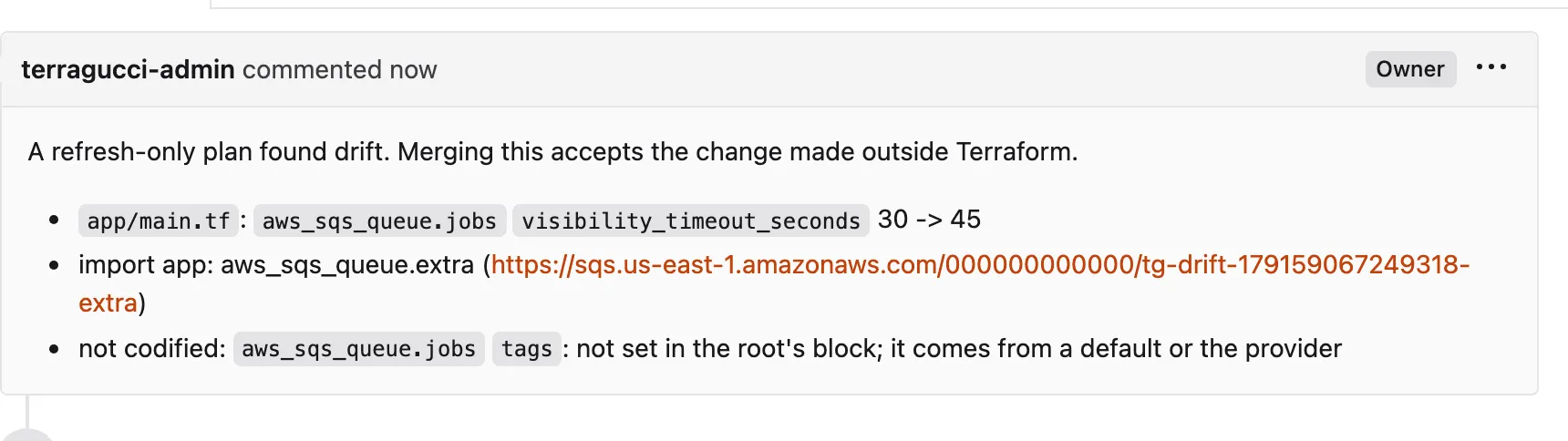

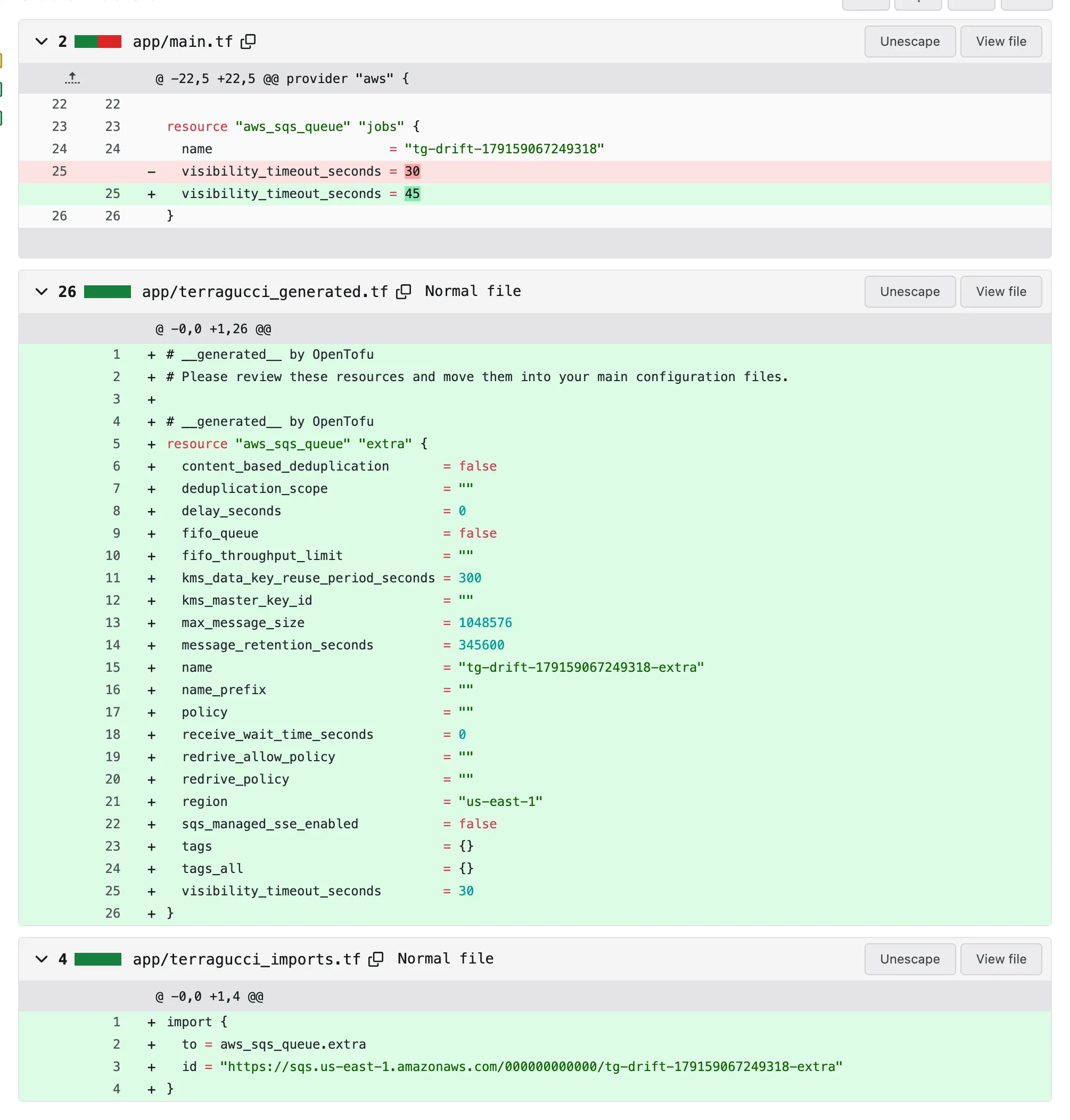

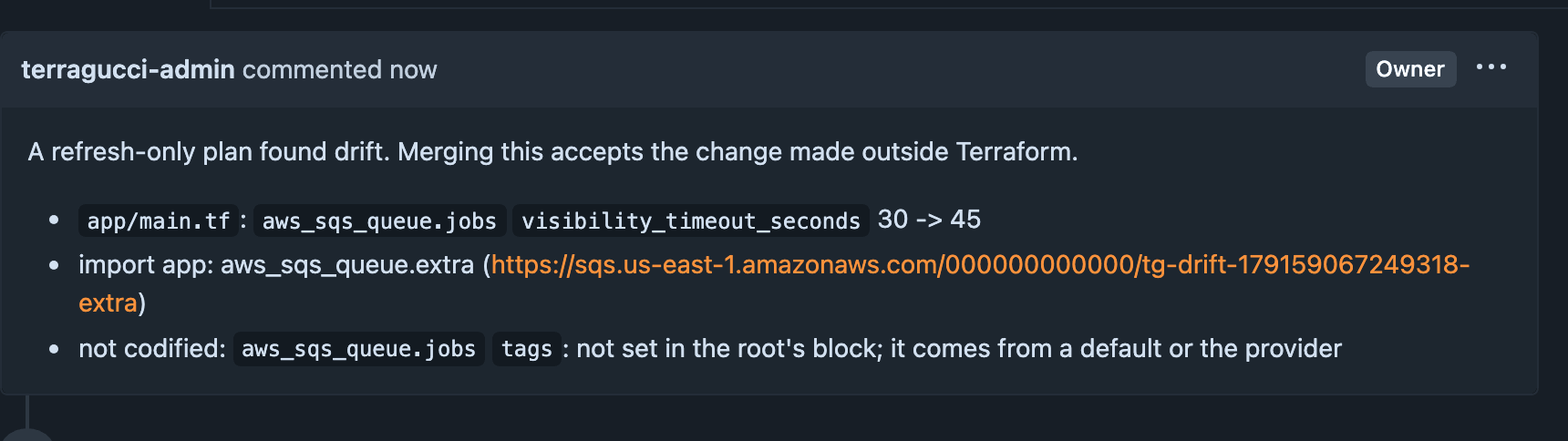

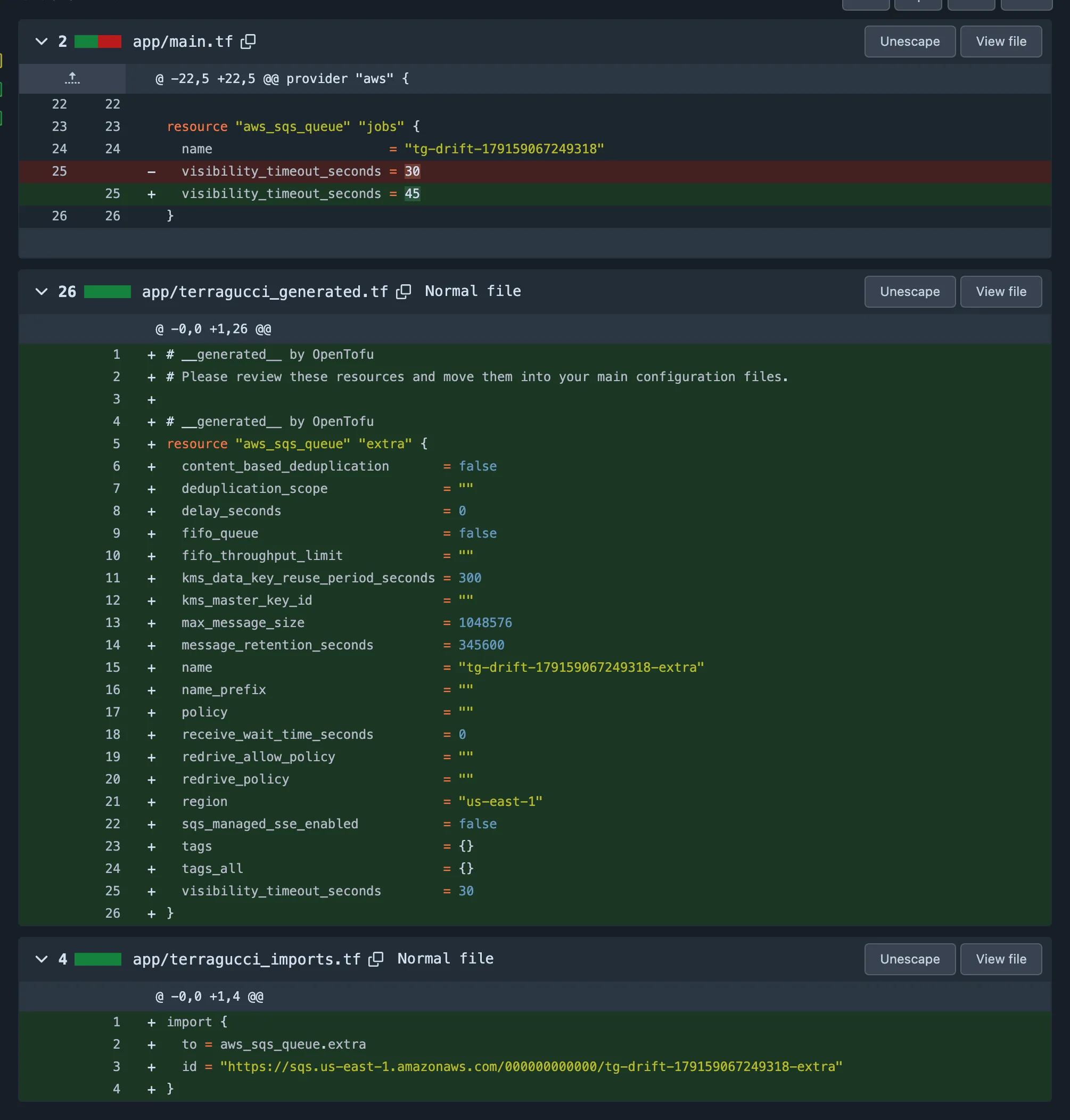

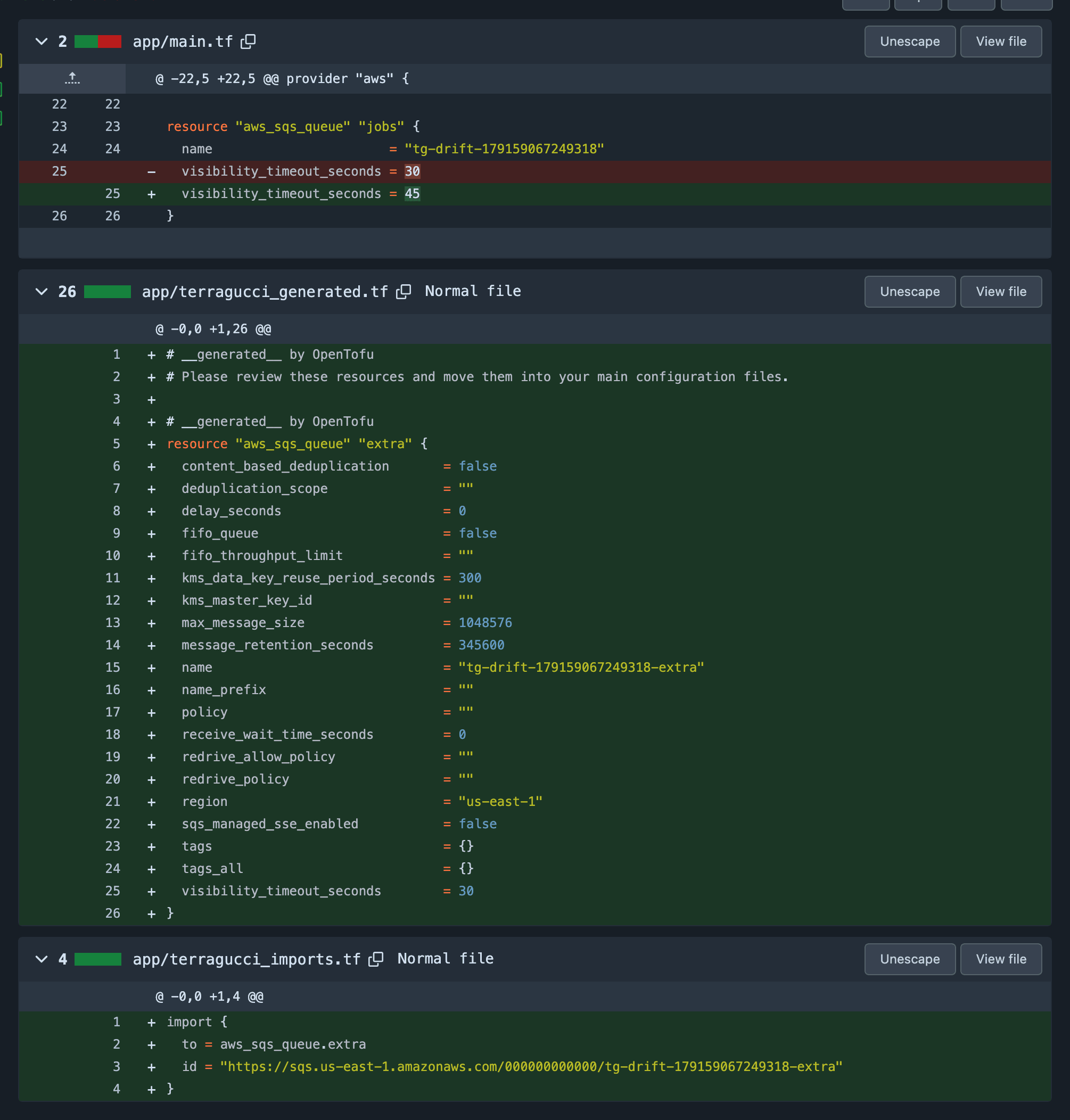

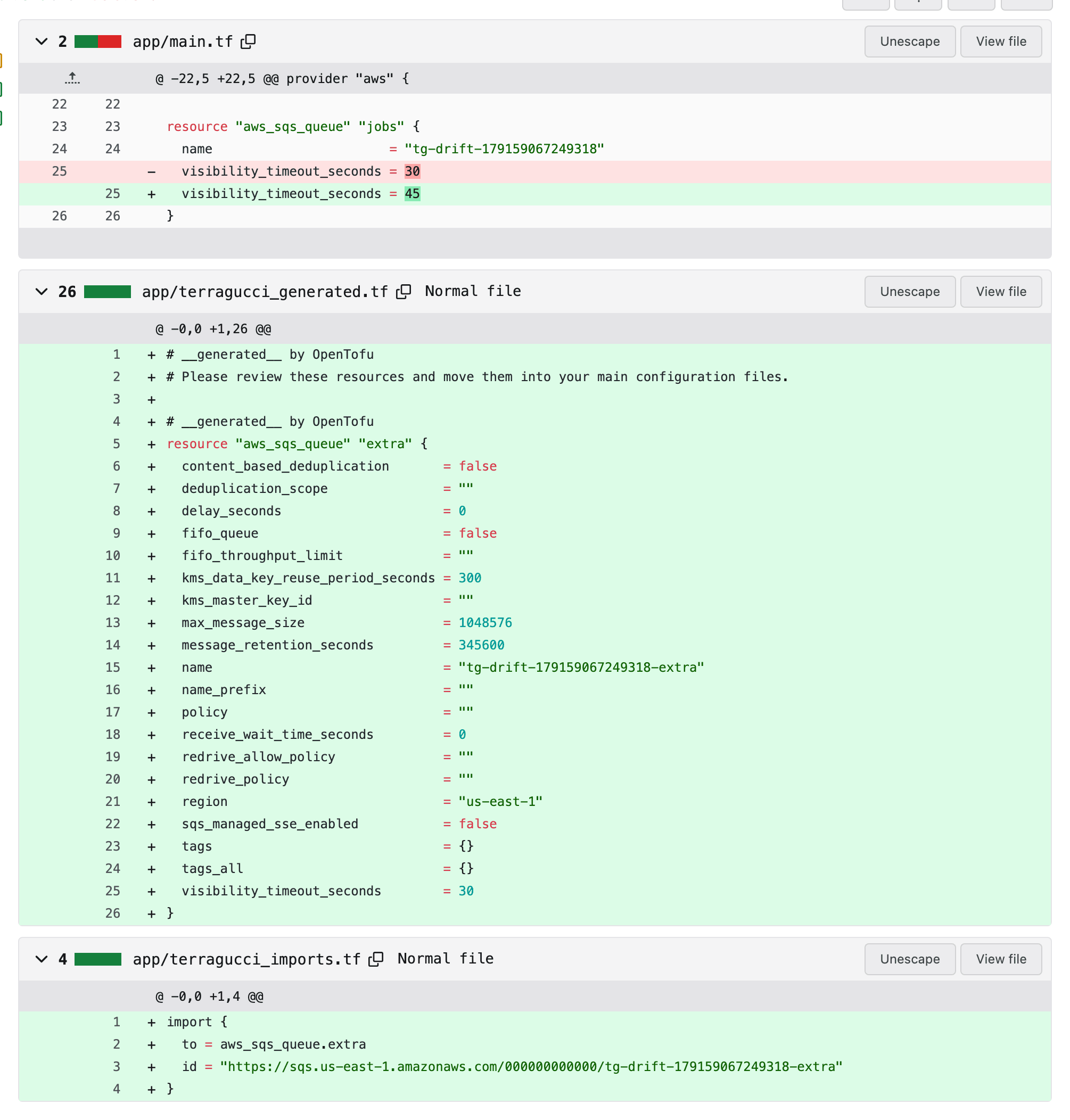

A refresh-only plan finds the drift (a full plan on a choudoufu root under live resource markers), and the pull request writes the live value where the root’s own resource block holds a literal. Merging it accepts the outside change, so read it first.

Other changes are only reported:

The value	Why it stays
set from a variable or an expression	the literal to change is elsewhere
set inside a module	the module serves other roots too
on a count or for_each instance	one literal sets every instance
never set in the root	it comes from a default
on a resource deleted outside Terraform	the next apply makes it again

In a Terragrunt repo a unit’s resources are in the module its terraform.source names, and what differs between units is their inputs. Where the module sets the drifted attribute to var.<name> and the unit’s own terragrunt.hcl sets <name> to a literal in inputs, the pull request writes the live value there, so only that unit changes. A literal in the module is only reported, since every unit calling the module shares it. The same goes for a module from outside the repo. The drift job plans again only the units its report shows drifted. --import names a root’s files, so it is refused in a Terragrunt repo.

Under synth the roots are the app’s output, so there is no literal to write: respond.drift: pull-request with a drift schedule is a config error, and respond drift refuses.

For a resource the state lacks, pass --import <address>=<id>. From Terraform 1.14.1, a root with a .tfquery.hcl file gets imports from terraform query.

Drift attribution

With respond.drift: attribute, each drifted attribute goes through three steps in order; the first to answer wins.

Step	Source	Decides
1	a table of by-design writes: ECS task count, autoscaling and node group sizes, provisioned DynamoDB capacity, RDS minor upgrades, aws: tags	the write is expected
2	CloudTrail LookupEvents over 14 days, for aws_ resources	the newest write Terraform did not make: a service principal is a controller, a user is a person
3	a typed decision, when decide is set	the attribute stays unattributed below the choice threshold; sensitive values are never shown

Reading the audit log

Needs	Detail
the aws CLI, version 2	the generated drift job installs it against a pinned SHA-256 unless it is on the path; a pipeline you write installs it the same way
cloudtrail:LookupEvents	on the job’s role
the region	audit_region, else the CLI’s
roots or Terragrunt units	terragucci stage tf-drift lists who changed each attribute in the drift issue, under its root or unit
decide.token_env	received on GitHub and Forgejo

If step 2 cannot run, it says so and step 3 follows.

Attributed to	In the drift pull request	Suggestion
a controller write	left out	add lifecycle { ignore_changes = [...] } to the resource
a provider default change	left out	pin the provider version that kept the old value, or set the attribute
a human edit	kept, with the actor when known	accept or revert it in the pull request

Nothing here applies or merges.

Pull request and release events

Description check

When respond.description: check and a decide block are set, the plan job asks the service whether the title and description fit the plan. The flag never blocks a merge and changes no gate.

Outcome	The note	intent.json
a yes at or above the threshold	starts with a line naming the destroys and replacements the text omits	records the decision
anything else	unchanged	says why

terragucci respond description --report terragucci-report --title "retag email" --description "Tags only." --mode apply

Tips, fmt and release notes

Tip	The pull request

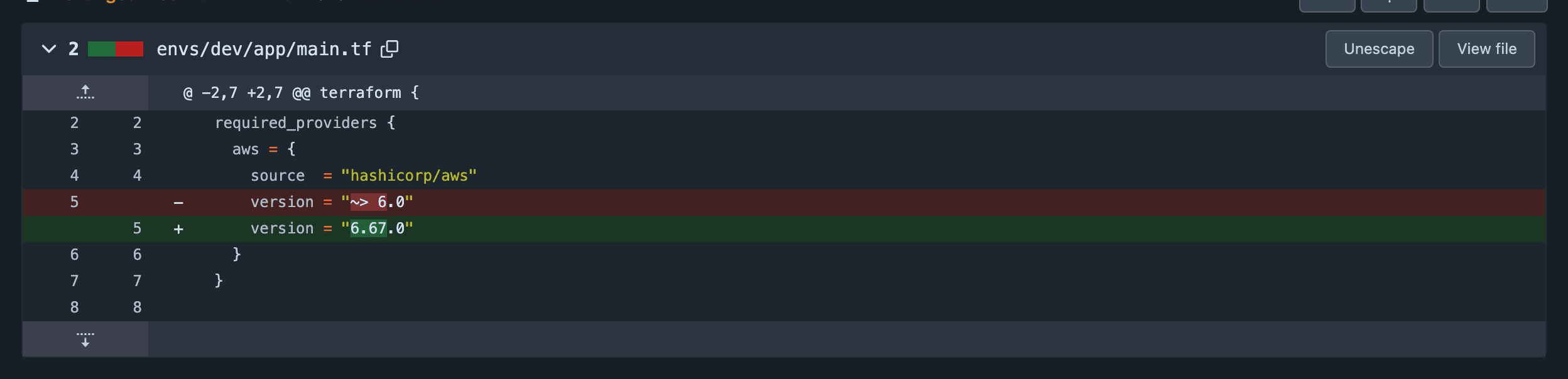

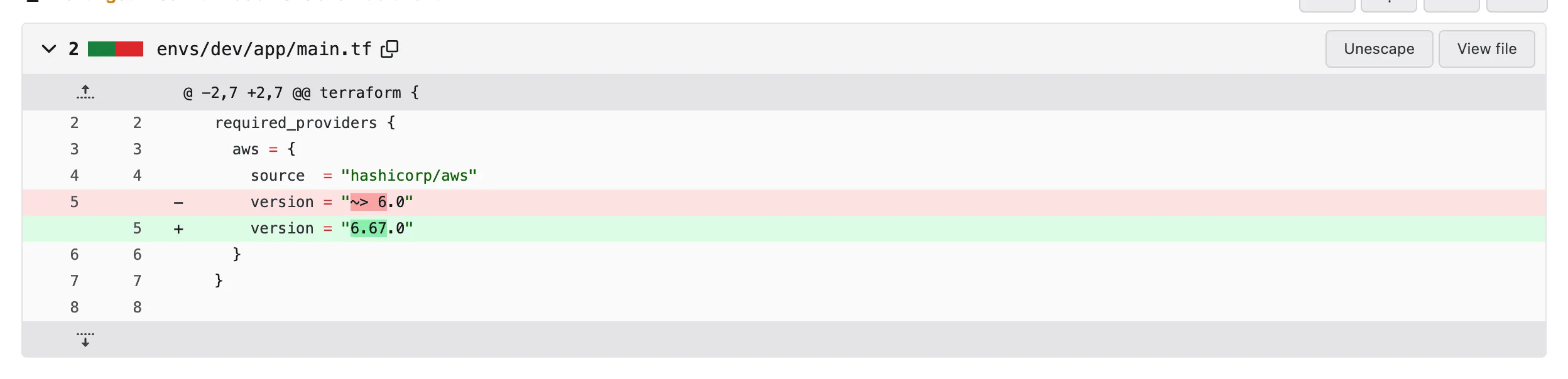

a provider taken by a range	pins it in required_providers at the version the lock file holds, so the next plan changes nothing
a root with no lock file	adds one written by providers lock, with hashes for Linux and macOS on amd64 and arm64 unless --platform names others
no canary	adds waves.canary
a rename (--report)	adds a moved block for each resource the plan destroys and creates with the same configuration (terragucci-moved), after the new block, in a pull request into --branch

tips --report reads the plans of a stage tf-plan report and proposes only the moved blocks; run it in a checkout of the branch that renamed the resources, after its plan. The generated tips job runs on the default branch after the applies, without --report.

Under synth the tips job runs the command first, and only the canary tip opens: the other two would edit files the command writes.

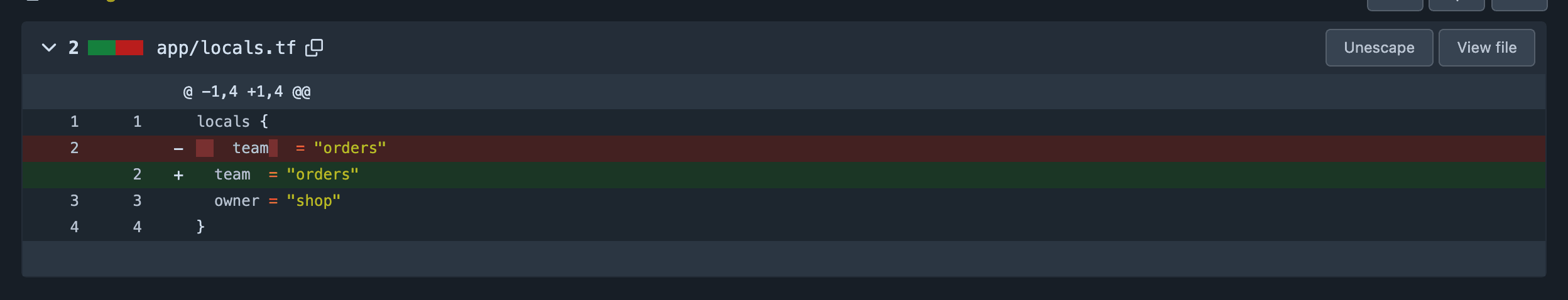

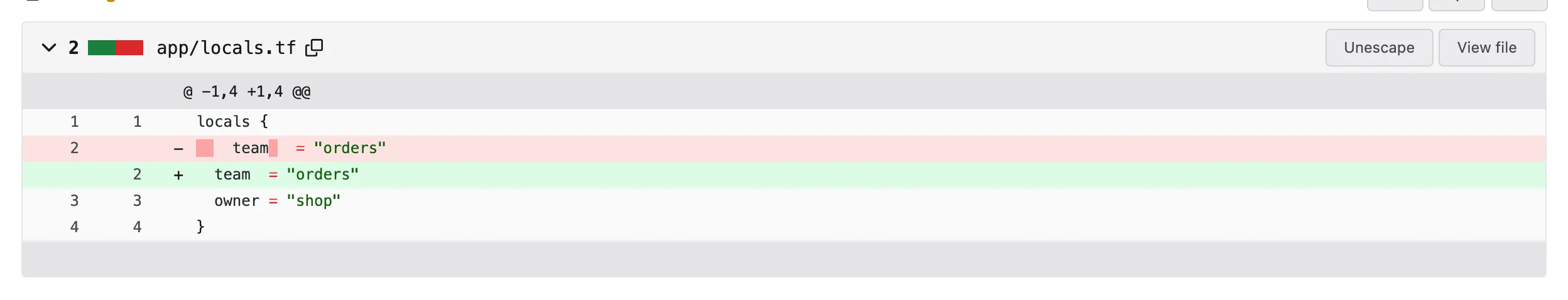

fmt runs on request and pushes one commit to the pull request’s branch, and refuses the default branch. In a Terragrunt repo it runs terragrunt hcl fmt beside the binary’s fmt, and the commit is style: terragrunt hcl fmt when only .hcl files moved. The generated pipeline’s fmt job runs it after a failed check, so the check job holds no token that pushes.

Release notes cover the commits that touched a module between its last two tags, breaking changes first.

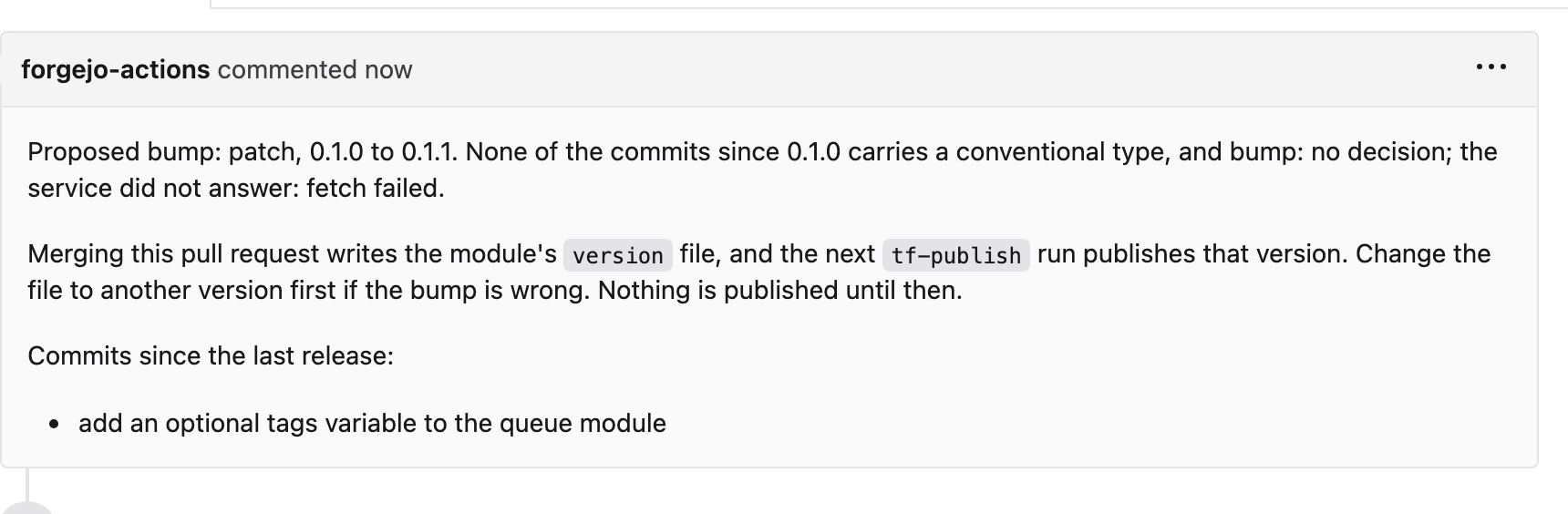

Version bump

The bump comes from the version bump rules. Under version-bump: suggest, the typed-decision service picks the bump when no conventional commit landed since the last release; this needs decide.

Where	What
a module’s releases	its git tags, <module>/v1.2.0
a registry-only project	pass --since <ref>; the version file at that ref is the last release (0.0.0 if none)
the version-bump job	runs terragucci respond version-bump --mode apply on the default branch after every apply wave, with full history; it needs permission to push a branch and open a pull request; a failed response never fails the job

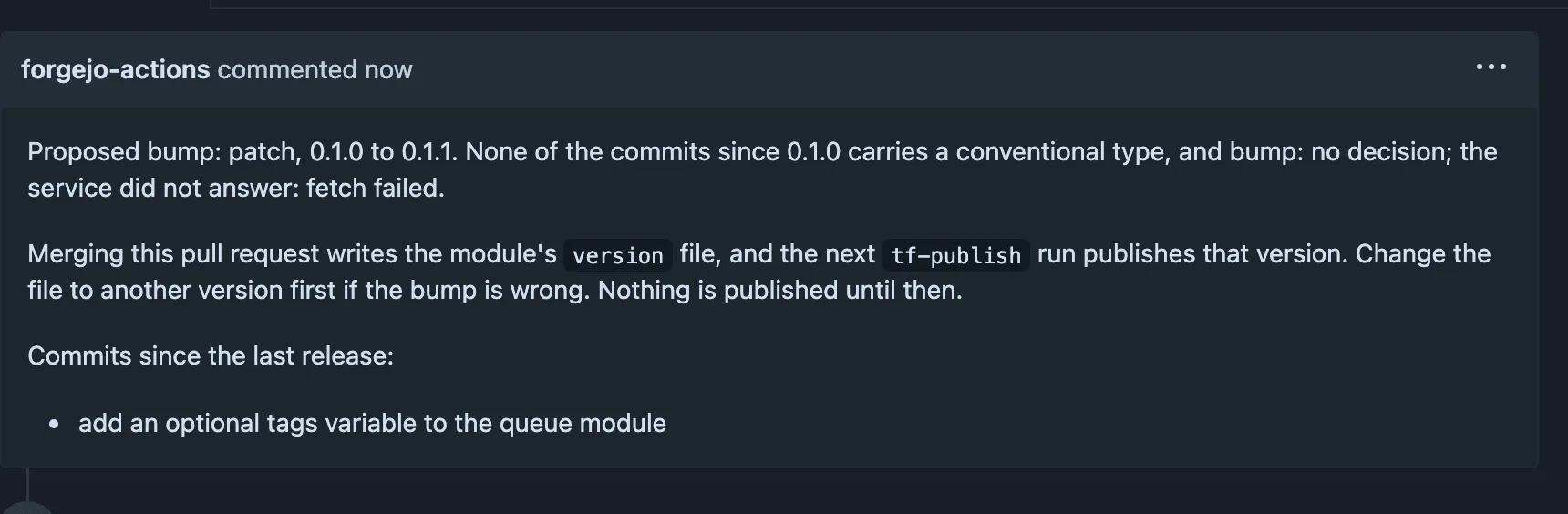

the release pull request	writes the version file with the bump and its probability; merging confirms it and the next tf-publish publishes it

Runtime

Responses run in CI with no model. To hand a result to your own agent, run the command with --json in a job whose token can only comment, as in Have an agent summarize a refused wave. The agent never holds an apply role or a gate’s signing key.
